40,000 litre liquid storage tank, compact footprint with the ability to scale large volumes efficiently with multiple tanks.
Technical specifications
Download DatasheetWeights / measurements
Volume
40,000 Litre,
40m3,
8,800 Gallons (UK)Length
7,900mm including rigged platform
Width
2,600mm
Height
3,260mm
Weight
6,300kg (approx.) empty
Mobilisation
- Self-offload by Roll-On-Off
- Self-offload by Hiab
- Liftable by crane using easy reach, low level lifting points
Technical
CONTENTS GAUGING
Sight tube
Vent
Vented (on closed roof versions)
Earth Bonding Point
Located on each end of tank
Manway Access
Low level, quick release, easy access hinged manlid
Top Access Platform
Integral access platform c/w steps, handrails, safety swing gate
Top Mounted Inspection Hatch
Visual contents inspection, accessible from platform
Internal Coating
Chemical resistant epoxy lining (Customer to supply MSDS for tank contents compatibility checking)
Sump Outlet
Located at each end of the tank to aid efficient draining and cleaning
Removable Roof
Specify configuration at time of ordering

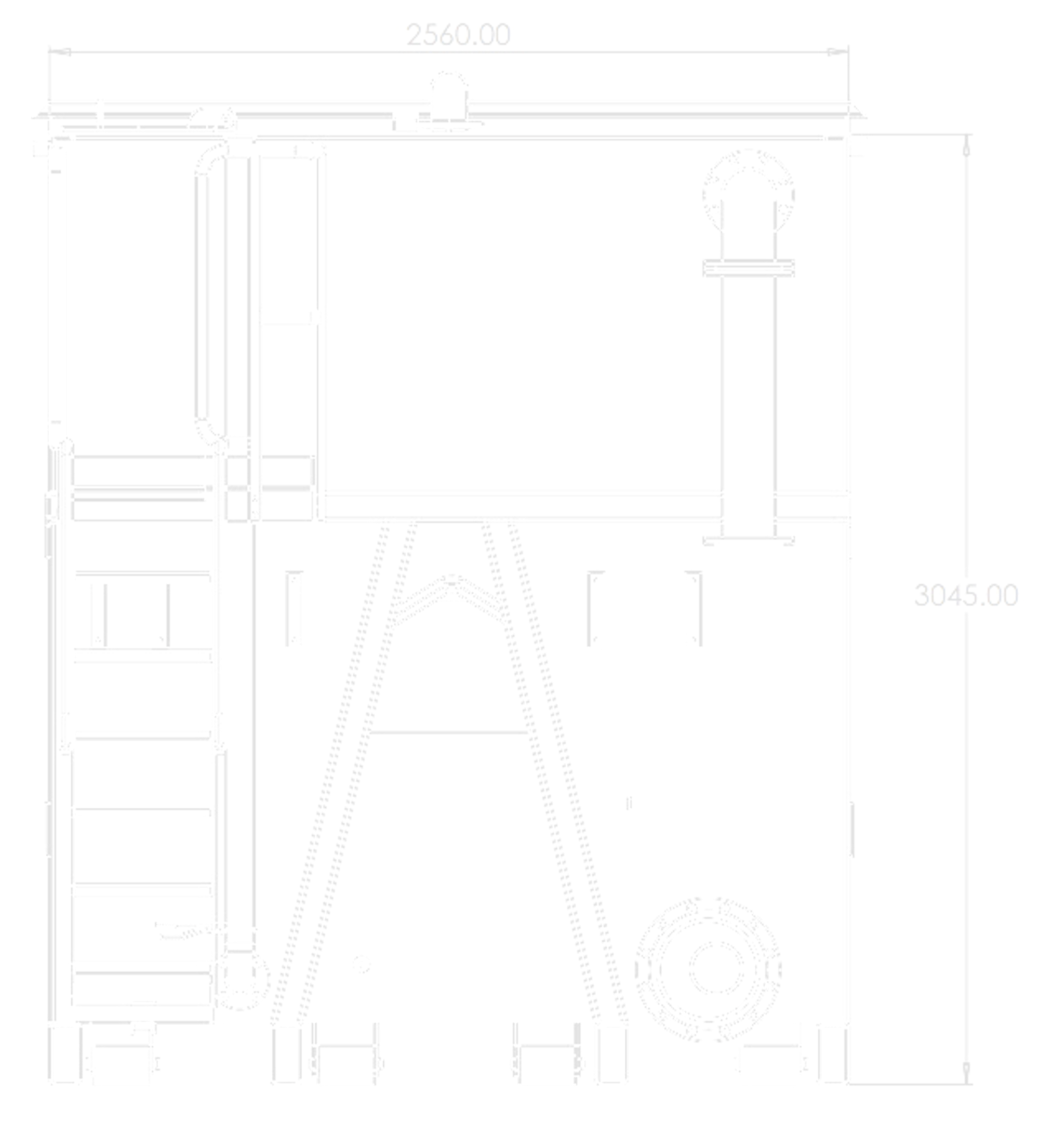

FRONT

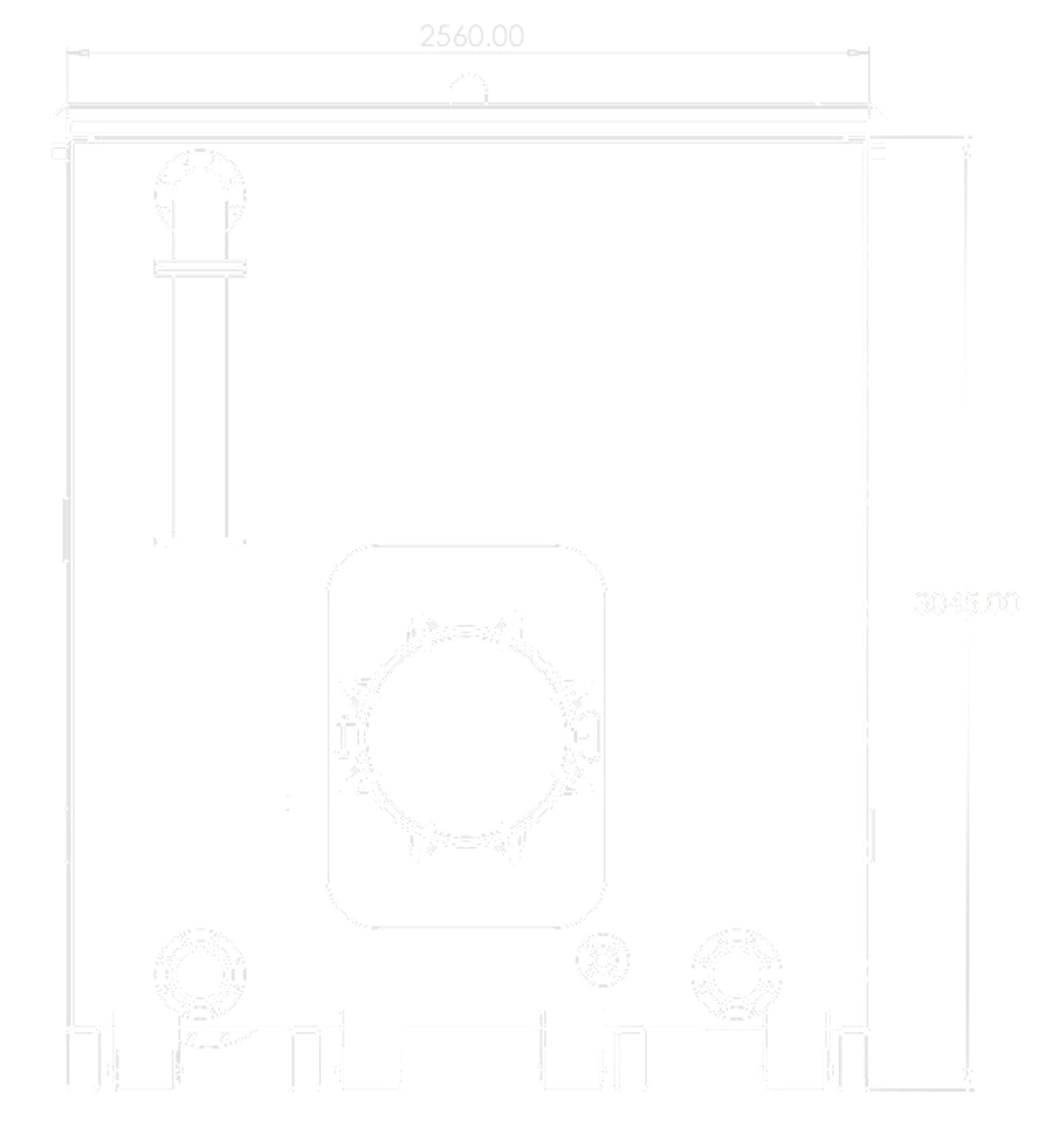

Rear
