Welfare System

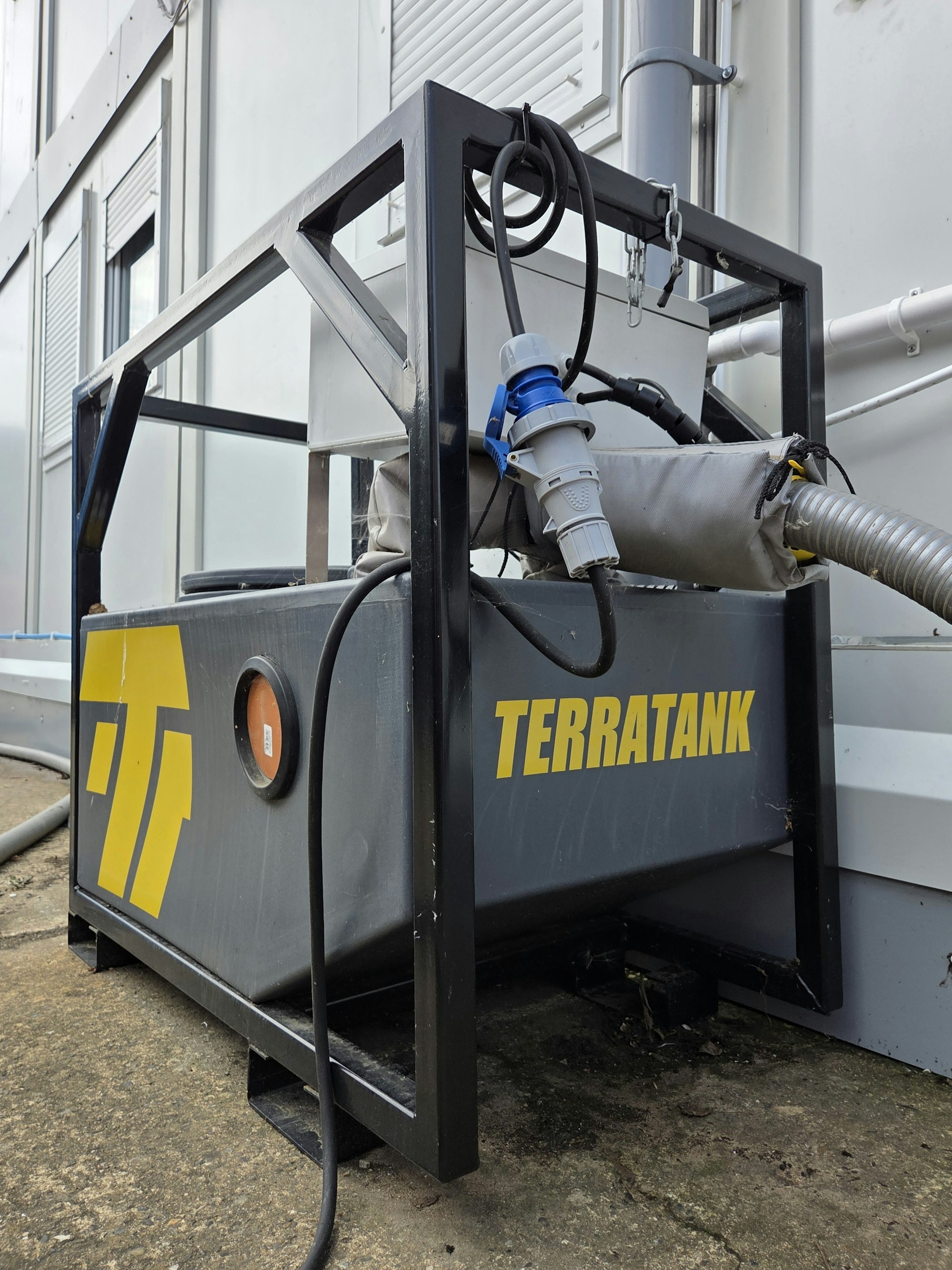

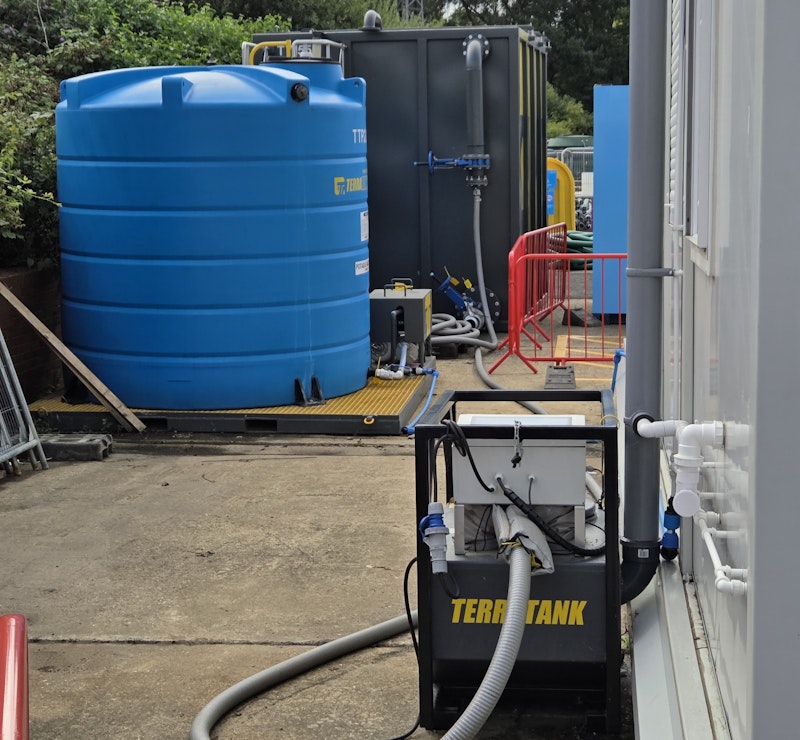

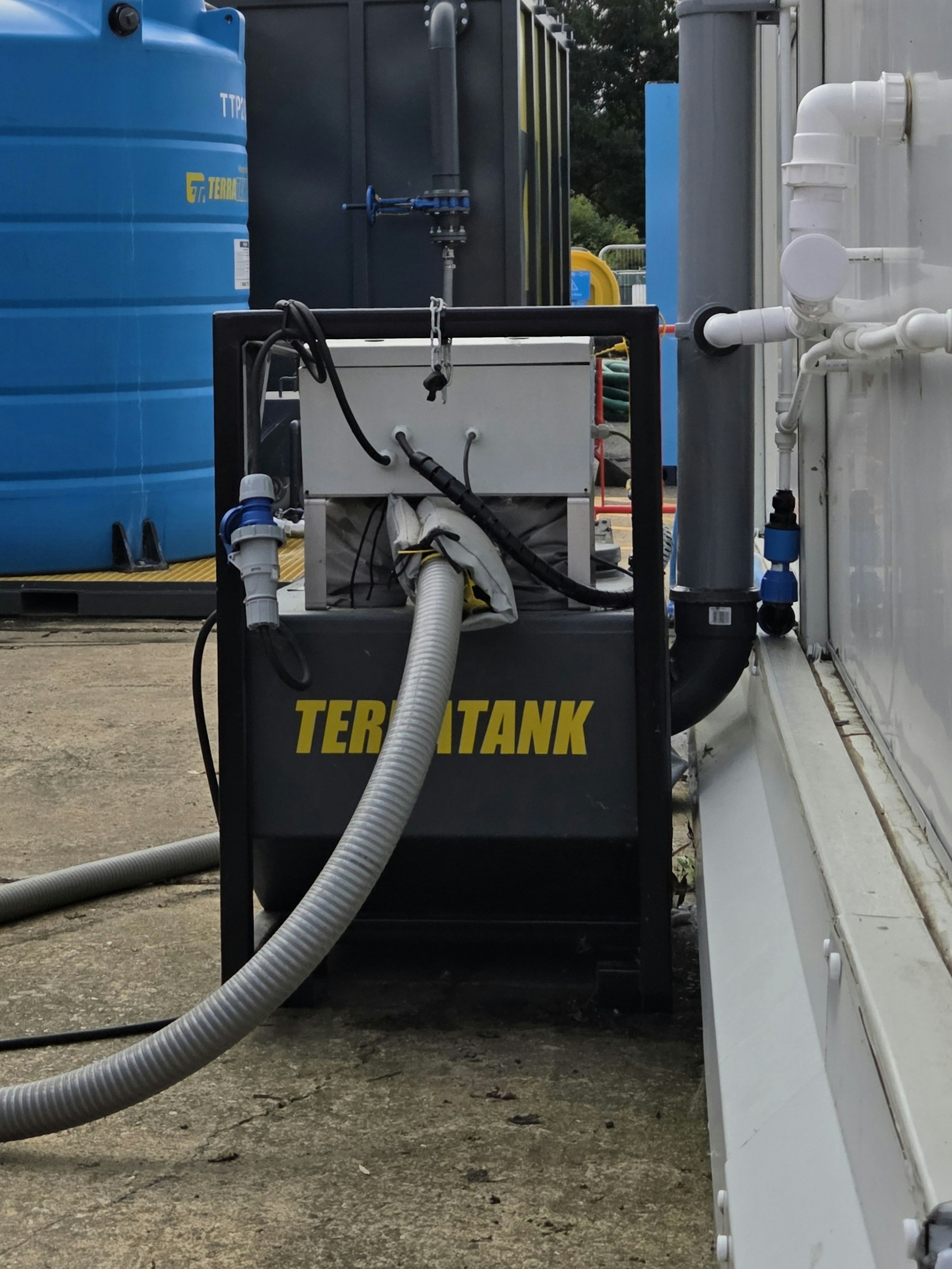

TerraTank’s modular, scalable, plug-and-play equipment, featuring our TT20 Bulk Storage Tank and PT63 Welfare Pump, can be manifolded together to create an end-to-end welfare solution by directing wastewater to a larger storage tank.

Installing TerraTank’s temporary welfare system can:

  • Minimise waste tanker visits on site
  • Eliminate effluent tank overflow risk
  • Reduce downtime
  • All whilst maintaining a compact footprint

Request a quote

This field is for validation purposes and should be left unchanged.

Or speak to someone right away

Call the team: 01264 243 116

Side

Rear

Technical specifications

Download Datasheet

Measurements & Weight

  • Length

    1,100mm

  • Width

    600mm

  • Height

    900mm

  • Weight

    150kg

Mobilisation

  • Fork/strap lifting points

Specifications

  • Max Pumping Distance

    1,000m

  • Max. Pumping Height

    20m

  • Pumping Main Required (OD)

    63mm

  • Pump Type

    Macerator

  • Automatic Flush Valve

    Yes

  • Power Supply

    230V

  • Power Rating

    1.5kW

  • Rated Current

    16A

  • Thermal Pump Protection

    Yes

  • Power Connection

    16A Commando Plug
