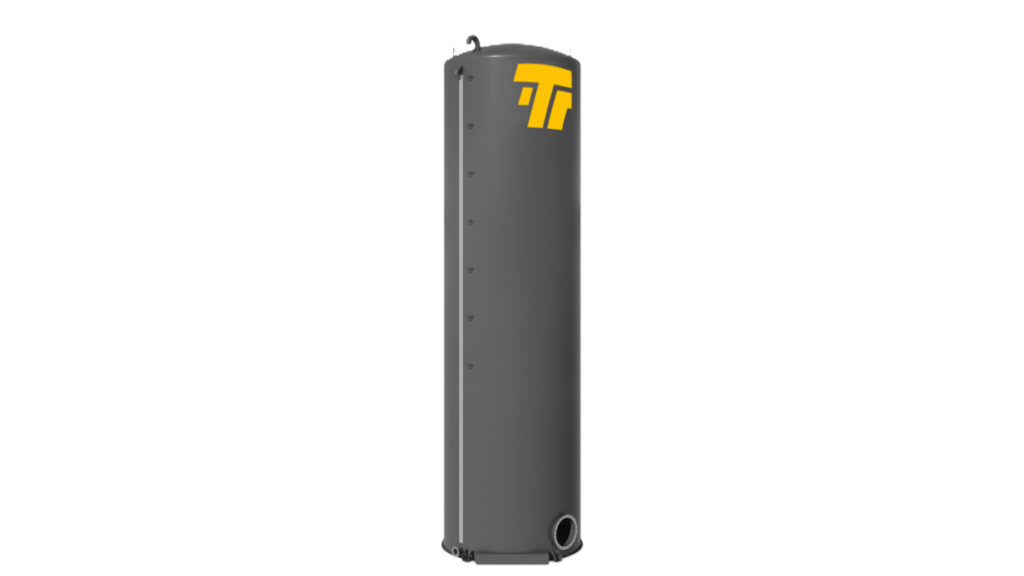

The TTV75 lined bulk tank.
The TERRATANK® TTV75 is a vertical storage tank constructed using high-quality materials such as reinforced polyethylene (HDPE) or steel. The tanks are engineered to withstand the demands of storing liquids and are built to be durable, reliable, and long-lasting. TERRATANK® offers a range of tank capacities to suit different storage needs. These tanks are available in various sizes, with capacities ranging from 10,000 ltrs to 100,000 ltrs.The specific dimensions will depend on the chosen capacity and design specifications.
If in any doubt, ask our technical team who will be happy to help: Call the team on 01264 243 116
Low level step-through oval access allows easier access for cleaning and inspection.
Designed to maximise the efficiency of containment and processing of liquids, the innovative TERRATANK® are easy to connect, commission and clean.
Large capacity with a small footprint.
| Volume | 75,000 litres, 75m3, 16,500 gallons |
| Height | 10,500mm |
| Diameter | 3,000mm |
| Weight | 8,500kg (approx) empty |
| Ground Pressure | 164 kPa Over flat base when full of liquid SG 1.12 |
| Pre-slung lifting tackle for crane lifting |
| Pipe Connections | 4 inch (100mm) Flanged fill pipe + valve + coupling
4 inch (100mm) Low level flanged + valve + coupling Valve + Coupling connection tailored to requirement. |
| Level Indication | Calibrated float gauge &/or radar (Telematic*) |
| Vent | Vented |
| Overflow | Top overflow pipe returning to low level |
| Manway Access | Low Level 600mm Dia. Manway & bolted lid |
| Lifting Equipment | Pre-slung lifting tackle for crane lifting |
| Base fixings | 4 No ground anchor brackets with 28mm Dia. Fixing holes |
