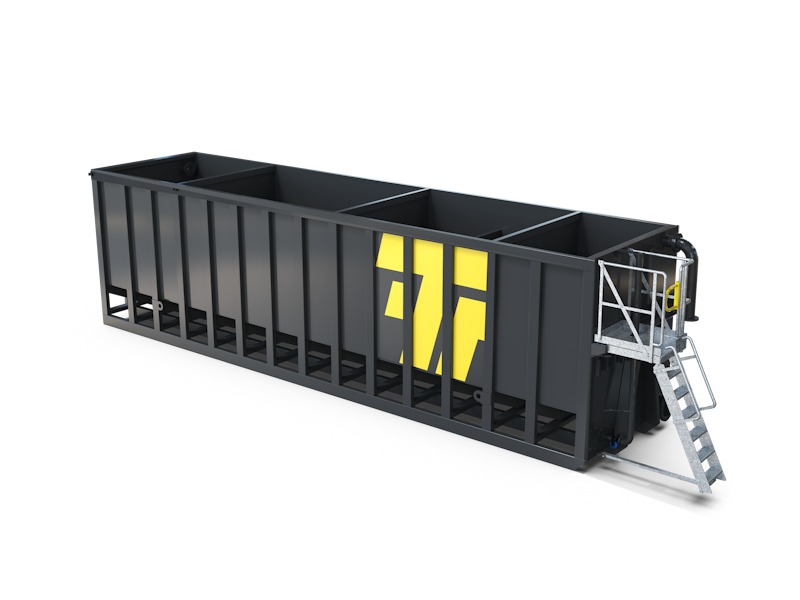

60,000 litre settlement weir storage tank, ideal for reducing the load on subsequent treatment processes by removing a significant portion of the suspended solids and organic matter from the liquids.
Technical specifications
Download DatasheetWeights / measurements
Volume
60,000 Litre,
60m3,
13,200 Gallons (UK)Length
12,800mm - including rigged platform
Width
2,560mm
Height
3,063mm
Weight
10,300kg (approx.) Empty
Ground Pressure
216 kPA Over 4 Skids when full of liquid @ SG 1.12
Mobilisation
- Self-offload by Roll-On-Off
- Liftable by crane using easy access, low level lifting points.
Technical
CONTENTS GAUGING
Sight tube
Vent
Vented (on enclosed roof versions)
Earth Bonding Point
Located on each end of the tank
Top Access Platform
Integral access platform c/w steps, handrails, safety swing gate
Internal Coating
Chemical resistant epoxy lining (Customer to supply MSDS for tank contents compatibility checking)
Sump Outlet
Located at each end of the tank to aid efficient draining and cleaning
Removable Roof
Specify configuration at time of ordering
Weir Design
Over and Under weir design using solid plates
Floor Design
V-shaped floor to aid discharge of separated particles

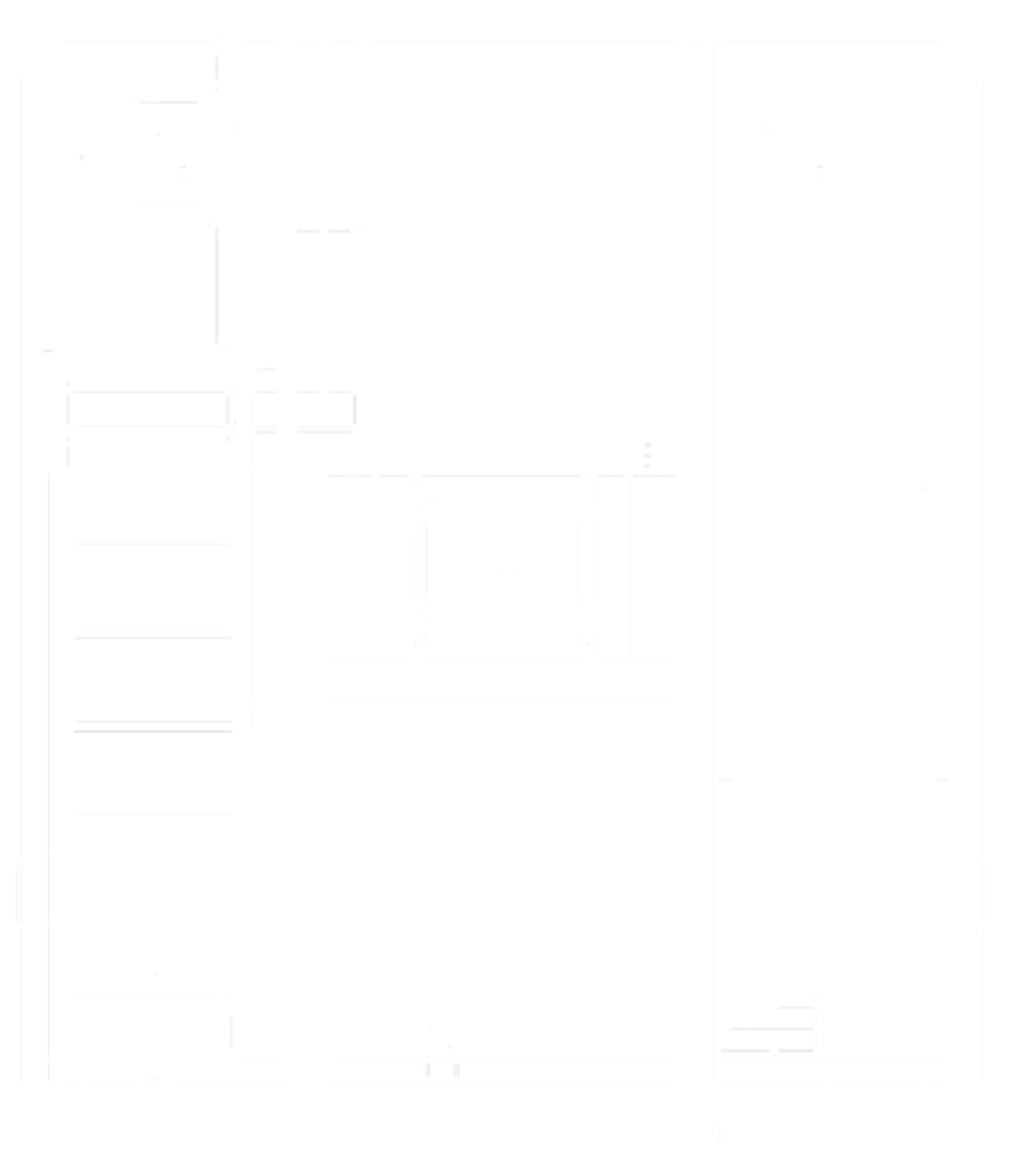

FRONT

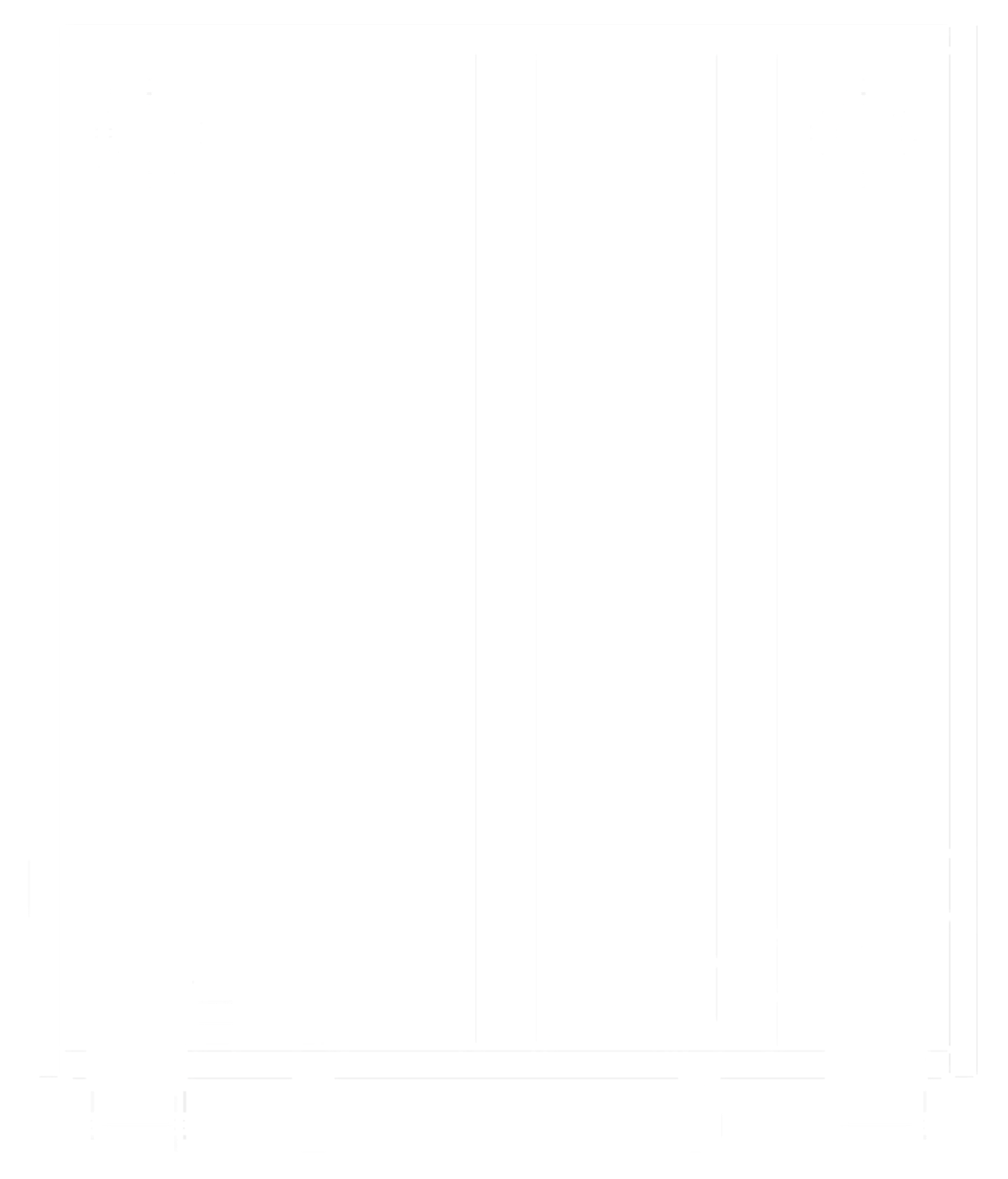

Rear
